S64

H2T M/F

SIKORSKY CH-54 Tarhe SIKORSKY S-64 Skycrane

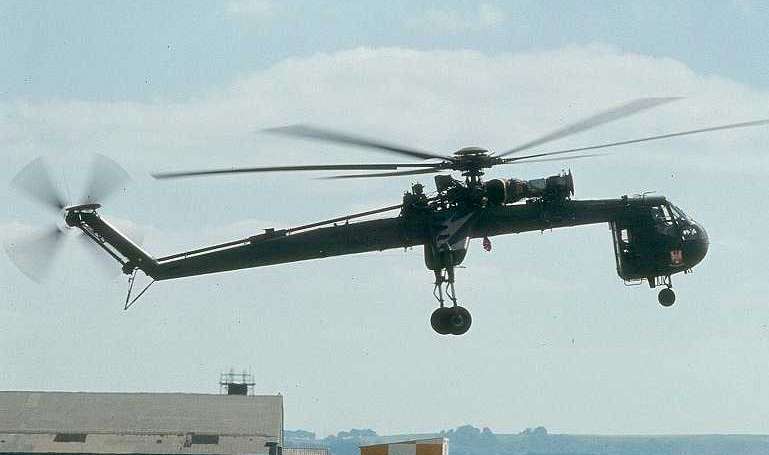

SIKORSKY CH-54 Tarhe SIKORSKY S-64 Skycrane S64 aircraft photograph

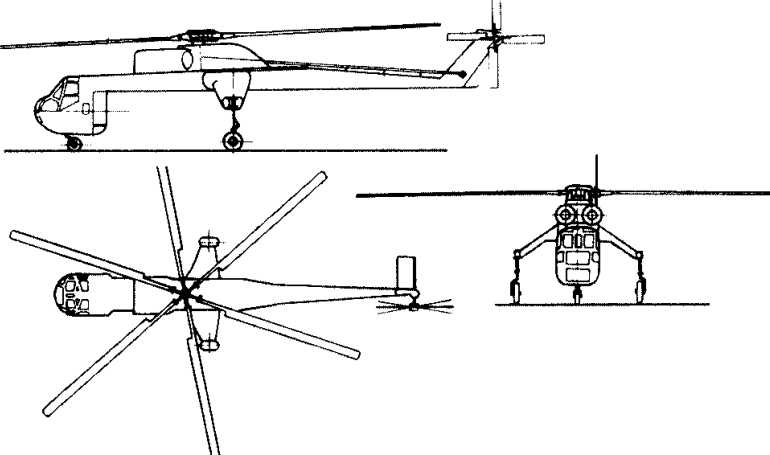

SIKORSKY CH-54 Tarhe SIKORSKY S-64 Skycrane S64 3D view

Technical Data

Wing Span (m)-

Length (m)21.4

Height (m)5.6

MTOW (t)21.3

Fuel Capacity (ltr)3330

Maximum Range (Nm)210

Persons On Board2

Take Off Distance (m)-

Landing Distance (m)-

Absolute Ceiling (x100ft)130

Optimum Ceiling (x100ft)60

Maximum Speed (kts/M)108

Optimum Speed (kts/M)91

Maximum Climb Rate (ft/min)1200

Manufacturers

SIKORSKY CH-54 Tarhe
SIKORSKY S-64 Skycrane
