PA14

L1P L/G

PIPER PA-14 Family Cruiser WAGAERO 2+2 Sportsman

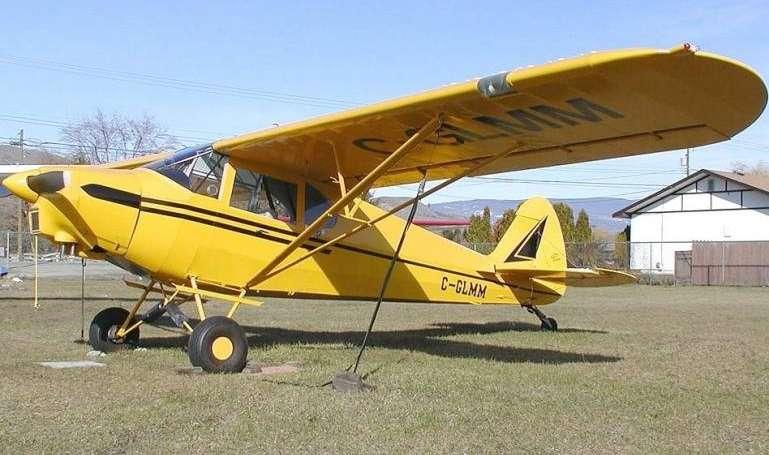

PIPER PA-14 Family Cruiser WAGAERO 2+2 Sportsman PA14 aircraft photograph

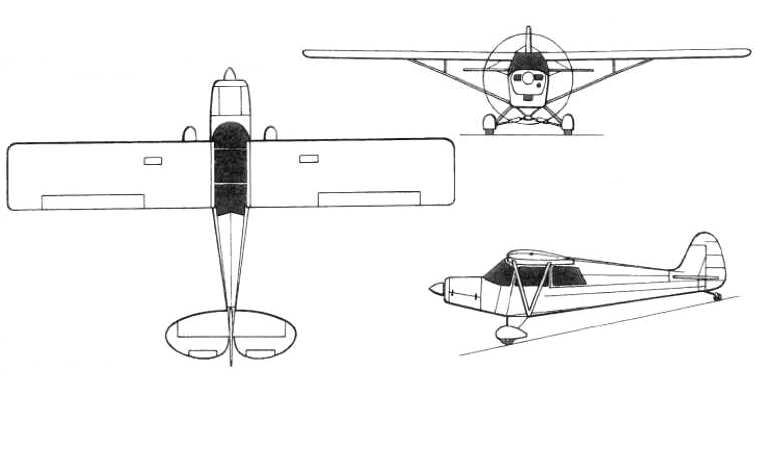

PIPER PA-14 Family Cruiser WAGAERO 2+2 Sportsman PA14 3D view
Technical Data
Wing Span (m)10.8
Length (m)7
Height (m)2
MTOW (t)0.8
Fuel Capacity (ltr)110
Maximum Range (Nm)435
Persons On Board2
Take Off Distance (m)300
Landing Distance (m)240
Absolute Ceiling (x100ft)125
Optimum Ceiling (x100ft)100
Maximum Speed (kts/M)107
Optimum Speed (kts/M)96
Maximum Climb Rate (ft/min)600
Manufacturers
  • PIPER PA-14 Family Cruiser
  • WAGAERO 2+2 Sportsman
